ZD30 Turbo Upgrade – High Flow Turbocharger for Nissan Patrol GU ZD30 CRD 3.0L

by Spartan Turbo System
Save 10% Save 10%
$1,999.00
$1,999.00 - $1,999.00
$1,999.00
$1,800.00
$1,800.00 - $1,800.00
$1,800.00

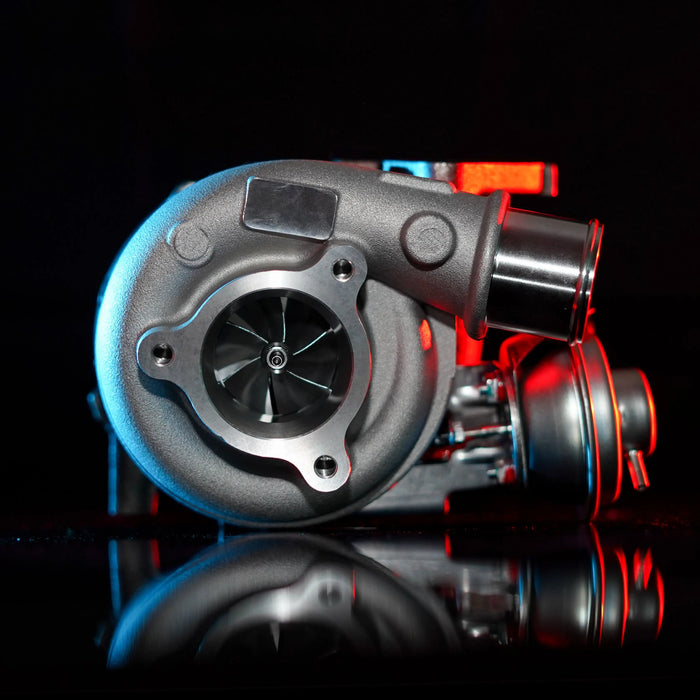

ZD30 Turbo Upgrade – Spartan 724639-STS46/CRD High Flow Turbocharger

The Spartan 724639-STS46 is a high-flow turbo upgrade designed specifically for ZD30 CRD (Common Rail Diesel) engines in the Nissan Patrol GU Y61.

This unit delivers a balanced combination of responsiveness, reliability, and power. Operating efficiently between 16–30 PSI, it can provide up to 250 HP and 750 Nm at the wheels, depending on ECU tuning and supporting modifications.

Key Advantages

  • Compatible with All Nissan Patrol ZD30 CRD Engines

  • Fast spool for improved throttle response

  • Lower EGTs and reduced EMP for safer engine operation

  • Direct bolt-on upgrade — no additional modifications required

  • Precision-built for long-term durability and consistent performance

This is our Larger ZD30 turbo, offering excellent drivability and reliability. We recommend this turbo to be fitted to CRD Engines only. Can be used on Di models, It May be laggy down low.

⚡ Nissan Patrol ZD30 Turbo Upgrade – Specs & Performance

Brand & Model: Spartan Turbocharger Systems, 724639-STS46 CRD

Part Numbers:
705954-0008 / 705954-5008S / 705954-8 / 705954-5008 / 705954-0009 / 705954-5009S / 705954-9 / 705954-5009 / 705954-0011 / 705954-5011S / 705954-11 / 705954-5011 / 705954-0013 / 705954-5013S / 705954-13 / 705954-5013 / 705954-0015 / 705954-5015S / 705954-15 / 705954-5015 / 705954-0016 / 705954-5016S / 705954-16 / 705954-5016 / 705954-0017 / 705954-5017S / 705954-17 / 705954-5017 / 723739-5002S / 723739-5002 / 723739-2 / 723739-0002 / 724639-5004S / 724639-5004 / 724639-4 / 724639-0004 / 724639-5007S / 724639-5007 / 724639-0007 / 724639-7

Turbo Specs

  • Boost Rating: 16–30 PSI

  • Cooling Type: Oil Cooled

  • Bearing System: Spartan Custom Bearing Set

  • Compressor Wheel: STS 44MM 6+6 Aero Space Billet

  • Turbine Wheel: STS 9-Blade Hi-Flow

  • Actuator: Vacuum System, Pre-Calibrated (Do Not Swap With Positive Pressure)

  • Fitting Notes: 100% direct fit for Nissan Patrol ZD30 CRD engines — no additional modifications required

🔧 Recommended Supporting Mods – Maximum Power Setup

  • Front-mount intercooler

  • +30 Injectors

  • Tillix or GFB VNT Boost Controller

  • 3" Exhaust

  • 3" Turbo Inlet With High-Flow Airbox

  • Custom ECU Tune

This setup is ideal for 25–30 PSI, producing 220–250 HP / 750 Nm.

🔧 Recommended Supporting Mods – Stock-Looking Engine Bay Setup

  • Tillix or GFB VNT Boost Controller

  • 3" Exhaust

  • 3" Turbo Inlet With High-Flow Airbox

  • Upgraded Top-Mount Intercooler

  • Custom ECU Tune

This setup works well for 20–22 PSI, providing 160–180 HP / 550 NM with a clean engine bay appearance.

🛠 Engineered for Power and Reliability

The Spartan 724639-STS46 CRD is designed to give ZD30 CRD owners a turbocharger that delivers exceptional power, reliability, and response. Featuring precision-matched components, it lowers EGTs, reduces EMP, and provides faster spool and improved drivability compared to the factory ZD turbo.
