Toyota Prado KDJ120 / KDJ150 1KD Bolt On Turbo Upgrade - High Flow Turbocharger For Toyota Prado 1KD-FTV 3.0L

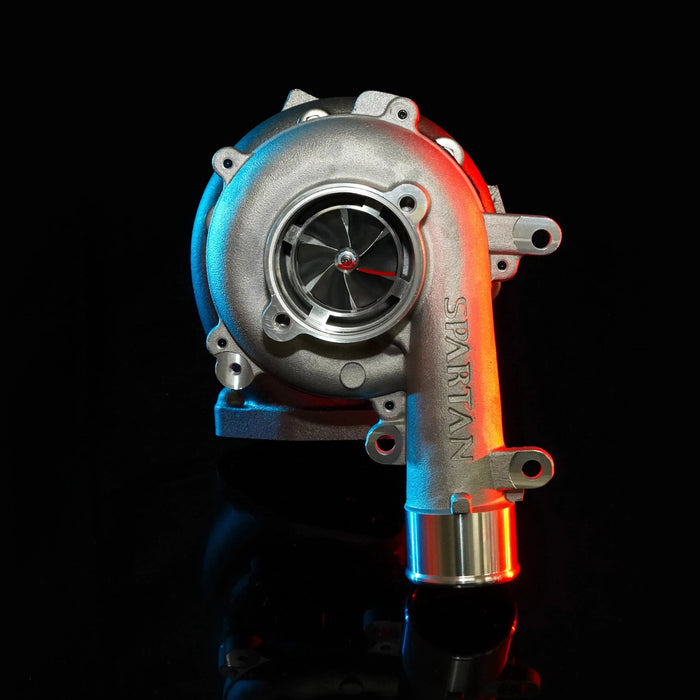

The Spartan CT16-STS46 Is A High-Flow Turbocharger Upgrade Designed For The Toyota Prado 1KD-FTV 3.0L D4D Engine Found In KDJ120 & KDJ150 Models. Precision-Built For Long-Term Durability And Consistent Performance.

This Unit Provides a Balanced Combination Of Responsiveness, Reliability, And Power. Operating Efficiently Between 16–30 PSI, It Can Deliver Up To 280 HP And 800 NM At The Wheels, Depending On ECU Calibration And Supporting Modifications.

✅ Key Advantages

  • Compatible All KDJ120 & KDJ 150 Models (1KD-FTV Engine).
  • Fast Spool For Improved Throttle Response.
  • Lower EGTs And Reduced EMP For Safer Engine Operation.
  • Direct Bolt-On Upgrade — No Additional Modifications Required.
  • Precision-Built For Long-Term Durability And Consistent Performance.

⚡ Toyota Prado 1KD Turbo Upgrade – Specs & Performance

17201-30100 / 17201-30101 / 17201-30160

Brand: Spartan Turbocharger Systems, 30160 STS46

Year Range: 2005 - 2015

  • Boost Rating: 15–30 PSI
  • EGT Rating: 600C Post Turbo
  • Cooling Type: Oil & Water Cooled
  • Bearing System: Spartan Custom Bearing Set
  • Compressor Wheel: STS 46MM 6+6 Aerospace Billet
  • Turbine Wheel: STS 9-Blade Hi-Flow
  • Actuator: Reuses OEM Actuator (No Electronic Actuator Included)

Bonus: All Our STS46-30160 Turbochargers Come With Our Billet Intake Pipe To Suit Cur Compressor Housing!

🔧 Recommended Supporting Mods

To Achieve Maximum Results With Your Spartan CT16-STS46 Turbo Upgrade, We Recommend The Following Supporting Modifications:

  • Front-Mount Intercooler
  • +30 injectors
  • High-flow 3” Exhaust
  • High-flow Intake / Airbox
  • Custom ECU tune

This setup is ideal for 25–30 PSI, producing up to 280 HP / 800 NM at the wheels.

To Achieve A Stock Looking Engine Bay With Your Spartan CT16-STS46  Turbo Upgrade, We Recommend The Following Supporting Modifications:

  • Upgraded Top-Mount Intercooler
  • High-flow 3” exhaust
  • High-flow Intake / Airbox
  • Custom ECU tune

This Setup Runs Efficiently At 22–24 PSI, Producing Around 220 HP / 600NM With Excellent Reliability.

🛠 Engineered for Power and Reliability

Spartan Turbocharger Systems Designed The 30160-STS46 To Give 1KD Owners a Turbocharger That Delivers Exceptional Power, Reliability, And Response. Featuring Precisely Matched Components, It Provides Lower EGT'S, Reduced EMP, And Noticeably Faster Spool And Improved Drivability Compared To The Factory 1KD Turbocharger.
